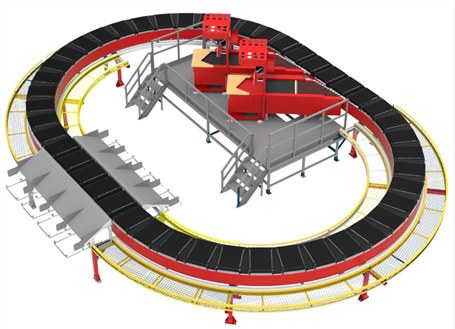

Cross tape sorting system

上市日期： 2023-09-20

Overview
Specification
Download

Descriptive	Parameter description
Maximum cargo size mm	L420W650H400
Minimum cargo specification mm	L100W100H5
Maximum cargo weight kg	5kg
Minimum cargo weight kg	0.05kg
Running speed	2m/s
Maximum Sorting Efficiency	20,000 pieces/hour (based on minimum shipment)
Trolley Pitch mm	500mm
trolley belt	Black PVC, low friction, small wrap-around corners
Trolley running power	48V Servo electric roller
Power per trolley KW	0.4KW
Main travel power	Permanent magnet synchronous linear motors
Linear motor power KW	3.5-5.5KW (according to the load, speed power change)
Rated power of the whole machine KW	Trolley power + linear motor power
Actual operating power KW	Half the rated power (to be adjusted for the number of grids
operating noise	70 dB or less
Sorting correctness	99.999%
Fuselage Material	Aluminum alloy + sheet metal cladding
Gusset Style	Slip Chute, Powerless Roller, Foley Wheel
Trolley power supply method	Slip wire (standard)
Trolley communication method	Distributed Leakage Cable Wireless Communications
